OEM/ODM SW135 Hex Extended Iron Head Demolition Hammer

Home / Products / Demolition Hammer / SW135 Hex Extended Iron Head Demolition Hammer

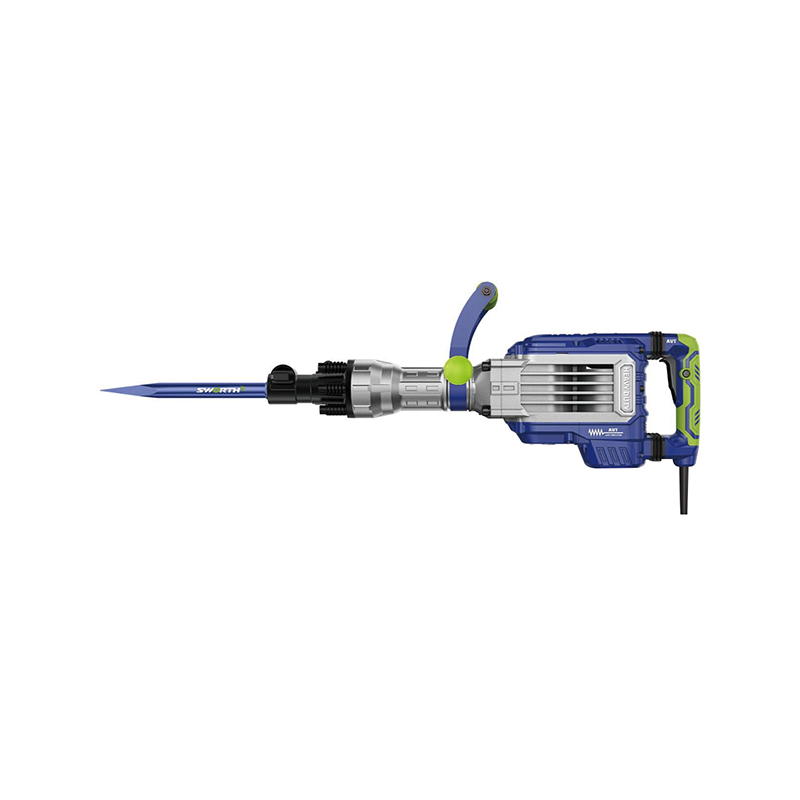

SW135 Hex Extended Iron Head Demolition Hammer

Product Overview
A demolition hammer with an extended forged iron head that packs the impact mechanism right inside the front end – delivering more striking force directly to the bit.

Applications

Breaking thick reinforced concrete in heavy civil construction

Demolition in bridge decks, piers, and retaining walls

Hard rock breaking in quarry and mining operations

Heavy trenching through frozen or compacted ground

Core Features

Extended iron head with built-in impact hammer – more force delivered directly to the bit

Integral forged iron head – no weld seams, no cracking

6-tooth rotating gear for higher torque

Cylinder made of 20CrMnTi alloy steel – double the service life

Dual anti-vibration handles – reduced numbness and rebound

Lock rod in 35CrMo with carburizing – 30% longer life

Upgraded brush holder with oversized 7×17×24mm carbon brushes

Soft rubber grip and oversized trigger

Why Customers Buy It
The extended head design puts the hammer action closer to the work surface, delivering noticeably harder blows, while the premium 20CrMnTi cylinder and forged head keep this tool running long after standard hammers have cracked or worn out.

Contact Us
PREV：SW125 Hex Integral Forged Iron Head Demolition Hammer NEXT：SW9128 Hex 6-Tooth Rotating Gear Demolition Hammer
  • Specification
  • Features
  • Contact Us
Rated voltage 220-240V~,50/60Hz
Power input 1750W
Impact frequency 1950rpm
Impact Joules 65J
Stator dia. Ø94*45H
Rotor dia. Ø53*45H

①6-tooth rotating gear, higher torque, greater power;
②Anti-slip handle with soft rubber, large switch, comfortable to press and hold;
③Integral forged iron head, no cracking;
④Double anti-vibration handle (top and bottom), no numbness, less rebound;
⑤Lock rod uses 35CrMo, carburizing process, working life increased by 30%, extended iron head with built-in impact hammer;
⑥Better brush holder structure, bigger carbon brushes (7*17*24mm);
⑦Cylinder made of 20CrMnTi, working life doubled;
